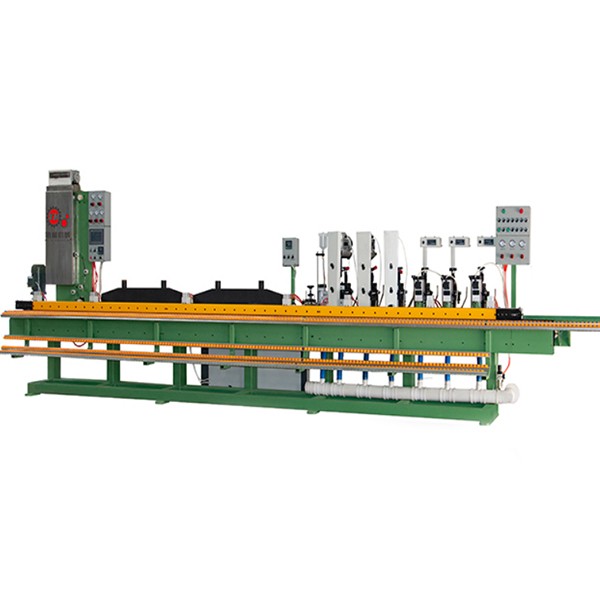

Sanding belt skiving machine

Sanding belt skiving machine is used in the manufacturing of sanding belts to produce a joint that allows the belt to run smoothly.contact:info@abrasives-machinery.com

EMAIL
  • Brief Introduction:

 Sanding belt skiving machine is used in the manufacturing of sanding belts to produce a joint that allows the belt to run smoothly.

  • Advantages:

►PLC programming control, convenient operation and high accuracy.

►High degree of automation of this machine include grinding head, gluing, heating and drying, film application, conveyor belt, etc

►This machine is equipped with a new type of upper and lower front and rear sliding plates, as well as tilt angles. The adjustment method

 is simple, accurate, stable, and easy to disassemble the grinding head.

  • Technical parameter:

Edge grind width: Continuous feed type, with infinite width.

Edge grinding speed :30-200mm/s(Stepless regulation)

Edge grind method: Diamond, sand belt, steel wire wheel, black diamond and other multi grinding head combinations, coated with glue,

heated and dried, and filmed in one go.

Cloth pressing device :Pneumatic

Supporting power :22KW

Air pressure :0.7Mpa

Power supply :380V  50HZ

Overall weight :2T

Machine size: L8300mm*W900mm*H2000mm
