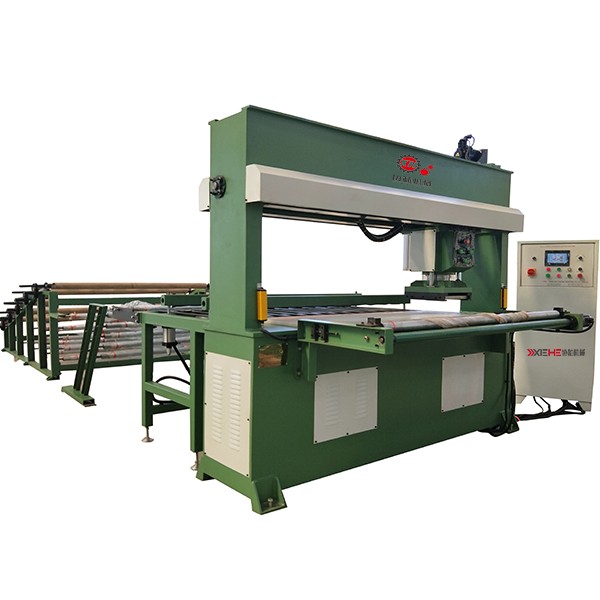

Abrasive paper disc cutting machine

XIEHE 35T High Speed Sandpaper Die Cutting Machine for abrasive disc. contact:info@abrasives-machinery.com

EMAIL
  • Brief Introduction

Xiehe abrasive paper disc cutting machine is specialized  for cutting abrasive paper jumbol rolls to specific sizes and shapes.

  • Technical data

1、Power:                          380V±10%,50HZ,

2、Max pressure:                           350KN

3、Effective working table:            500×2050mm

4、Sandpaper width:                       ≤1650mm

5、Stroke of oli cylinder:               145mm

6、Power:                                      About 9kw

7、Oil cylinder motor:                   2.2kw

8、Air compressor:                        ≥0.6MPa

9、Work speed:                             5-40times/min

10、Feeding length of material:   50-350mm

11、Size(L×W×H):              7790mm×2380mm×1800mm

12、Total weight:                    About 4700kg
