Brief Introduction

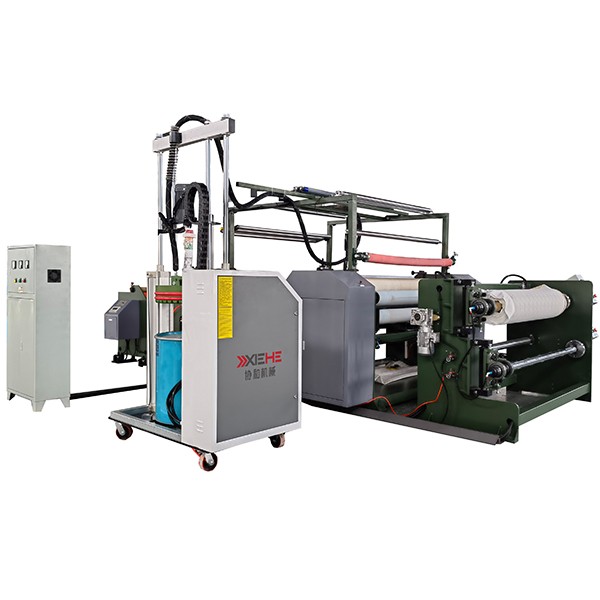

Xiehe roll laminating machine is designed to laminate various type of materials together through the application of hot melt adhesive.
It is a high-performance machine, suitable for the continuous process of jumbo rolls.
Main technical parameter:
Max web width:1650 [mm]
Designed mechanical speed: 1-55 [m/min]
Coating lamination speed: 5-45 [m/min]
Coating liquid: pur hot melt
Base material:Sandpaper、velcro, foam, PSA etc soft materials
Coating method:Roller coating
Max unwinding dia of sandpaper: φ1000 [mm] (inner Dia:3'')
Max unwinding dia of velcro: φ600 [mm] (inner Dia:3'') - Can be customized
Max winding diameter: φ1000 [mm] (inner Dia:3'')- Can be customized
Voltage:380V/440V±10%,50HZ,three phase- Can be customized
Size (L×W×H): 7.6 x 6.3 x 3.2 m
Options
Printing device
Slitting device
