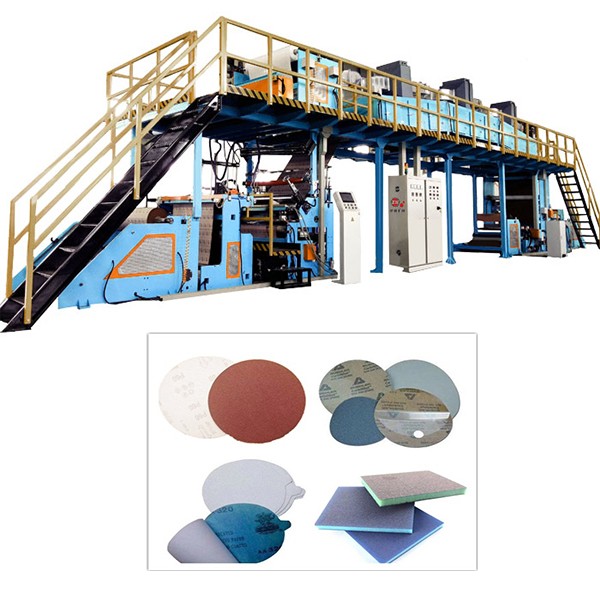

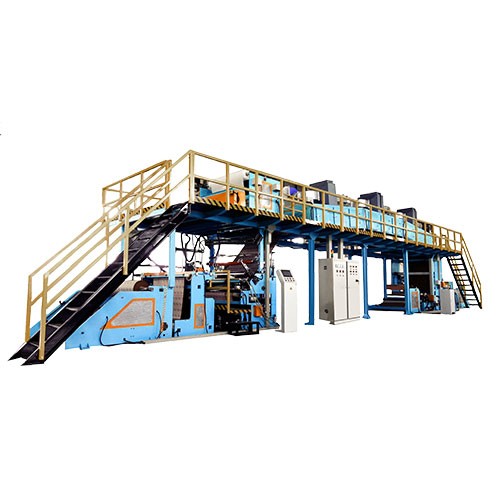

sandpaper lamination machine

Xiehe roll laminating machine is designed to laminate various type of materials together. It is a high-performance machine, suitable for the continuous process of jumbo rolls.contact:info@abrasives-machinery.com

EMAIL
  • Brief Introduction


Xiehe roll laminating machine is designed to laminate various type of materials together. It is a high-performance machine, suitable for the continuous process of jumbo rolls.


  • Main technical parameter:


Max  web width:1650 [mm]

Designed mechanical speed: 1-35  [m/min]

Coating lamination speed: 5-25  [m/min]

Coating liquid:  pur hot melt,water base glue,solvent base glue.

Base material:Sandpaper、velcro, foam, PSA etc soft materials

Coating method:Roller coating

Max unwinding dia of sandpaper: φ1000 [mm] (inner Dia:3'')

Max unwinding dia of velcro:           φ600 [mm] (inner Dia:3'')  - Can be customized

Max winding diameter:                 φ1000 [mm] (inner Dia:3'')- Can be customized

Voltage:380V/440V±10%,50HZ,three phase- Can be customized

Size  (L×W×H): 11.6 x 6.3 x 3.2 m


  • Options


Printing device

Slitting device
